Drainage Channels and Storm Water Drains with light and heavy-duty frames

Consisting of:
Frames from rectangular angles and forge-welded, press-locked or interpenetrated gratings.

For further information do not hesitate to contact our technical department.

Extra heavy-duty drainage channels and storm water drains made of gratings and frames

Consisting of:
Frames from rectangular angles and interpenetrated gratings with bearing bar thickness 8 mm and bearing bar height from 50 to 100 mm, depending on the span and the load per wheel (DIN 1072).

Replacement of cast iron due to bigger free drainage surface (up to even 70 %).

For further information do not hesitate to contact our technical department.

Drainage channels and storm water drains made of stainless steel (material AISI 304)

Consisting of:
Frames from stainless steel rectangular angles and interpenetrated stainless steel gratings with bearing bar thickness 3 mm and bearing bar height from 25 mm to 40 mm.

For further information do not hesitate to contact our technical department.

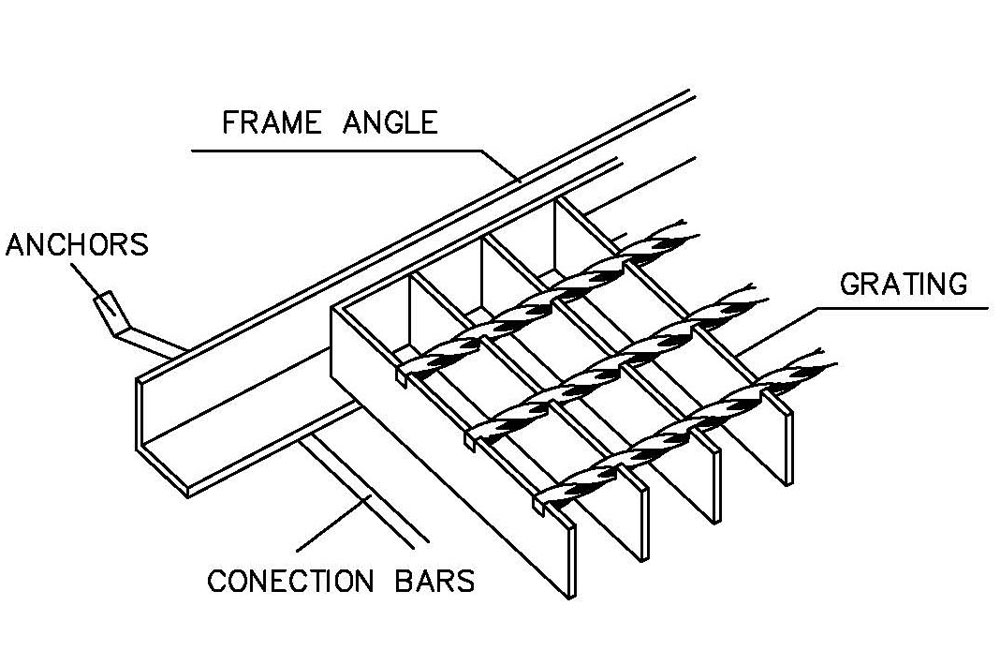

Anti-theft heavy-duty storm water drains

Consisting of:
- Frames from rectangular angles with embedding anchors
- Light or heavy-duty forge-welded or interpenetrated gratings.

AFTER CEMENTING THE GRATING CAN NOT BE REMOVED

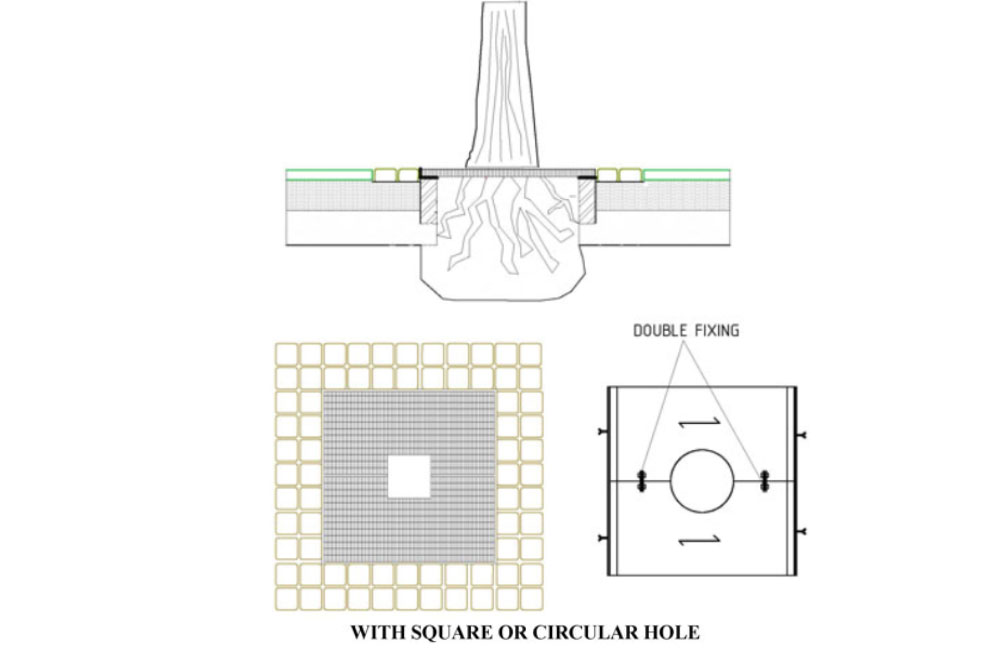

Tree Protection Gratings

Divided into segments, with frame, round or rectangular hole, in a variety of meshes.
